Vehicle Compatibility:
Comes with Plug & Play harness and canbus

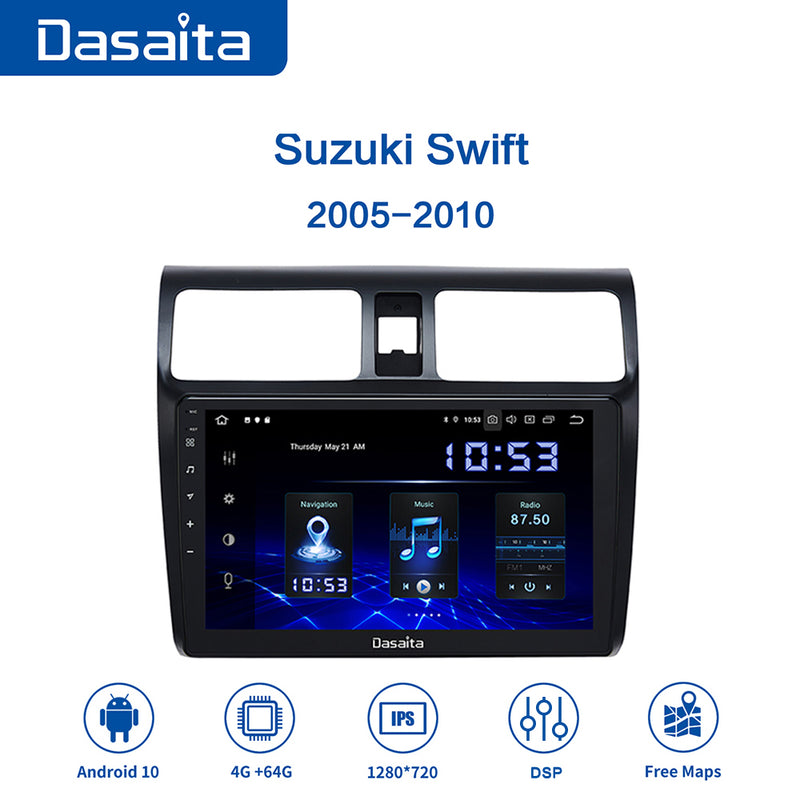

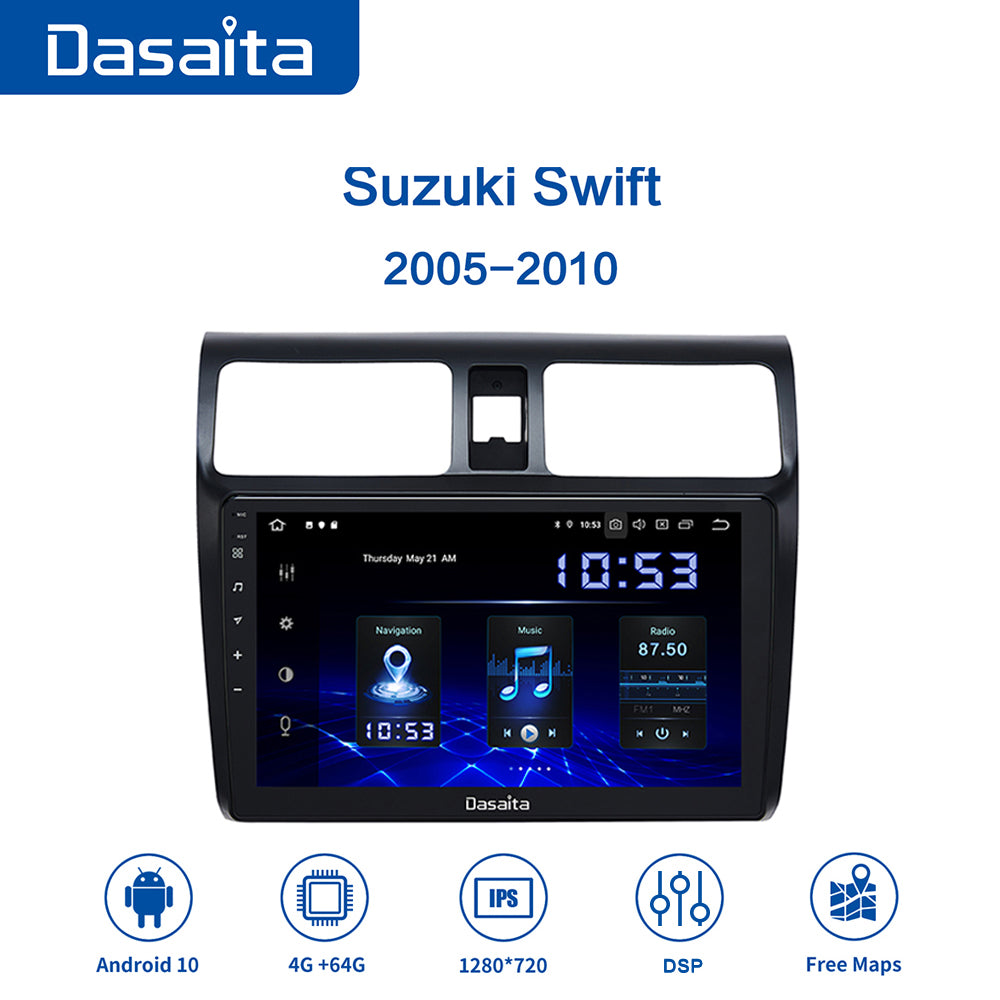

For Suzuki Swift 2005-2010/DYX044, compatible with Steering Wheel Controls. -
Specification:
Android 10.0 with MAX10 PX6 CPU, Hexa-Core 64bit, 4G RAM +64G ROM, provide the faster and stable operation system. -
Carplay & Android Auto:
Built-in carplay & android auto with Siri/Google Voice Control. Easilier to play music, get directions, make phone calls, and receive messages. -

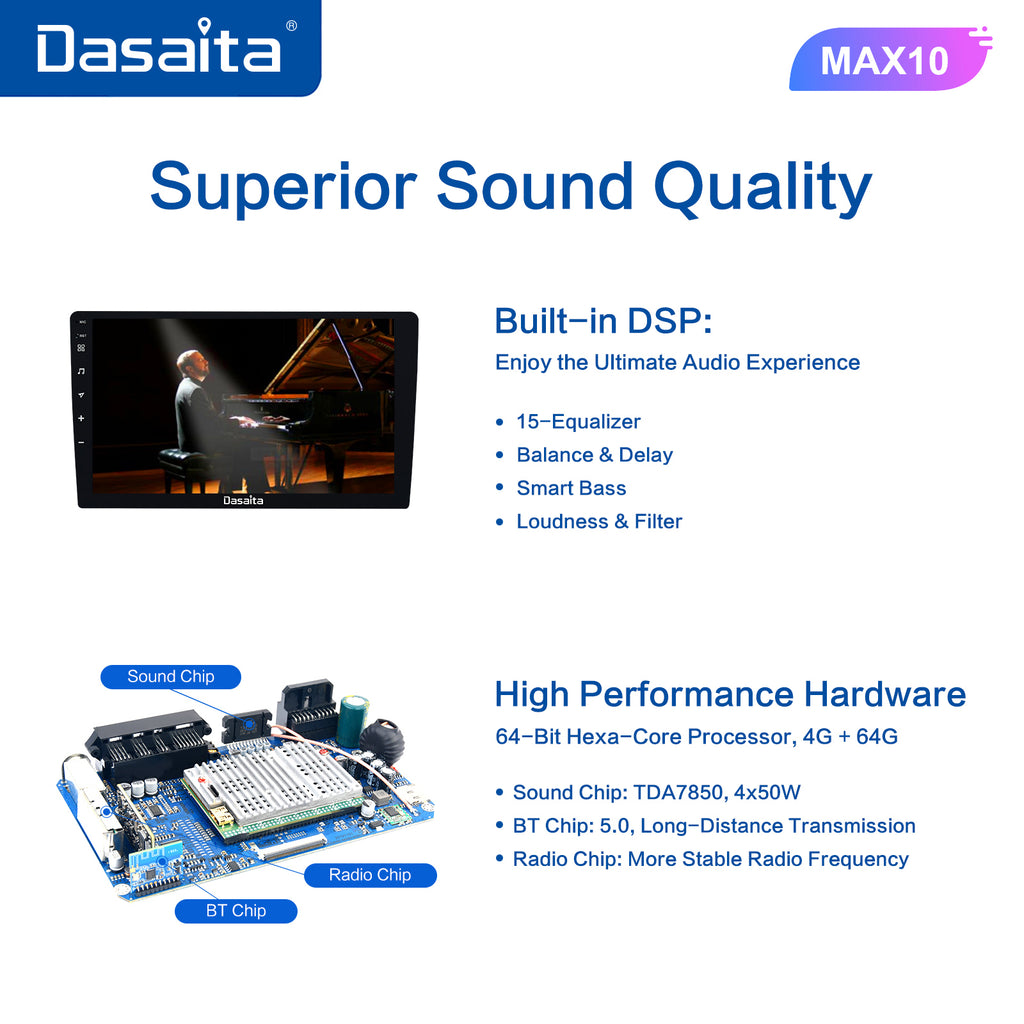

DSP Amplifier:
Built-in 4x50W Amplifier, offer the superior sound than OEM Radio, music sounds clear even at high volumes. Multiple EQ options can customize your favorite audio experience. -
IPS Screen:

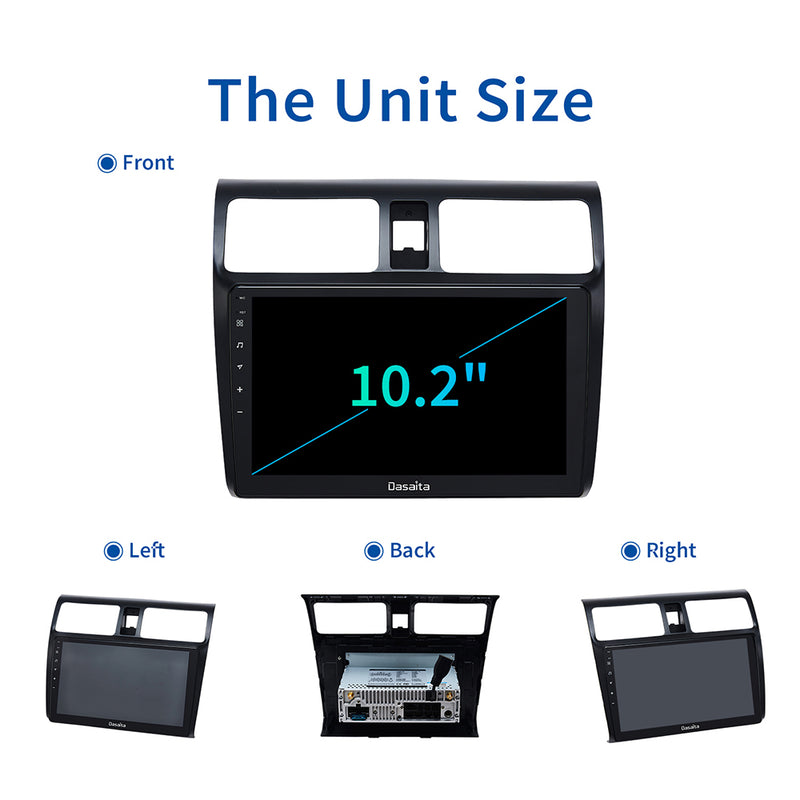

10.2" IPS Screen, resolution 1280*720 with clear visibility;IPS Touch Screen provide intuitive control over music playback and phone functions. -
GPS Navigation:
Built-in Navigation, support GPS, Galileo, Glonass, more satellites equal higher navigation accuracy and a faster positioning fix, get directions in real time without ever taking your hands off the wheel. -
BT:
Built-in BT, provide hands-free calling, phonebook Sync, a speed dial function; BT also enables audio streaming from the phone, even audio content or internet radio. Ensures the safe driving on the road. -
Internet:
Built-in Wifi & BT Tethering and optional dongle allowed you access to the internet, online music, video, and download apps from Google Play Store. -
Multifunction:
Carplay & Android Anto / Google Play Store / HD Video / Music / Radio / DSP / GPS Navigation / Wifi / BT Tethering / Internet / Split-Screen / Steering Wheel Control /RGB illumination -

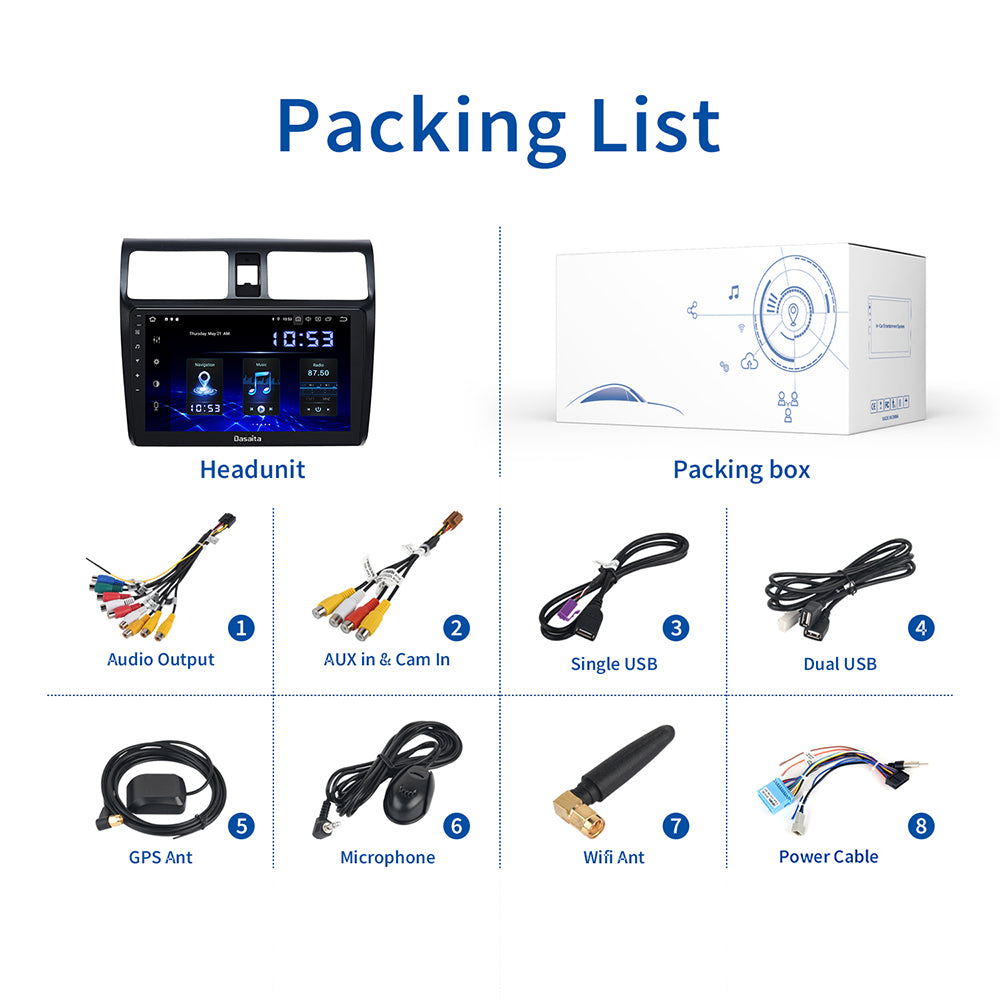

What's in the box:
1.Audio Output 2.AUX in & Cam in 3.Single USB 4.Dual USB Cable 5.GPS Ant 6.Microphone 7.WiFi Ant 8.Power Cable
Features & Specifications
FEATURES:
Platforms
- MAX10-CP-HD
DSP
- Subwoofer Level Adjustment
- 2.5V High Voltage PreOut
- 15-band Equalizer

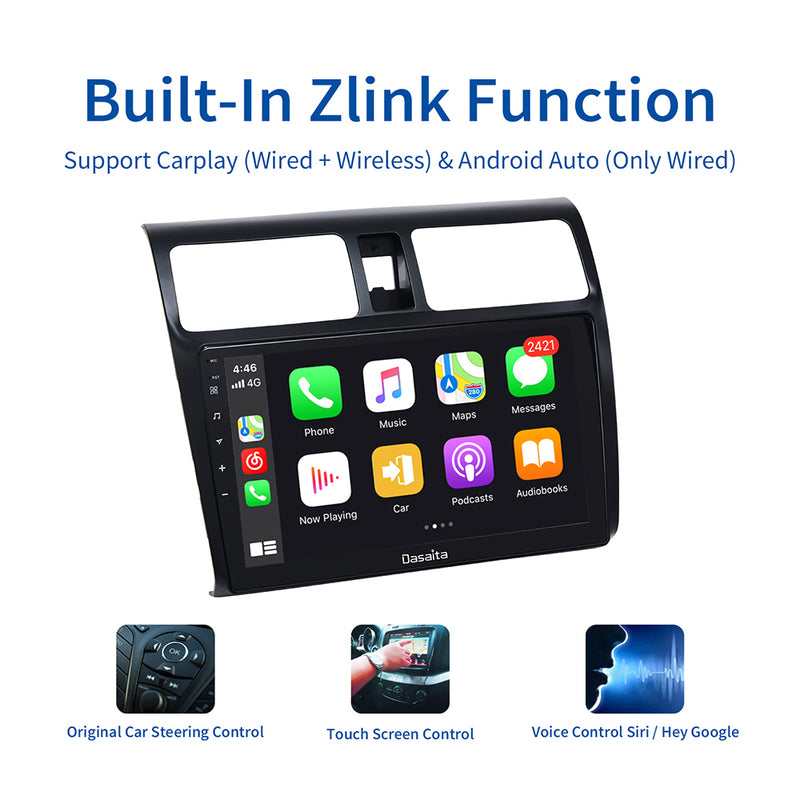

Built-in Zlink
- Works with Wired&wireless Apple CarPlay (Requires CarPlay Enabled iPhone)
- Works with Wired Android Auto (Requires Android Auto Enabled smartphones)
Music
- Music Playback: MP3, WMA, WAV, AC3, OGG, FLAC, etc.
Video
- Video Playback: AVI, MKV, MP4, WMV, RMVB, MPG, etc.
- JPG/BMP/JEPG/GIF/PNG, etc.
Radio
- Tuning Range: 87.5 - 108.0 MHz
- FM 18 Stations, AM12Stations
- RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
Bluetooth
- Hands Free Phone Call and Music Streaming
- Phone Book: Phone Book Synchronization
- External Microphone Included
Internet:
- Wifi, 3G/4G

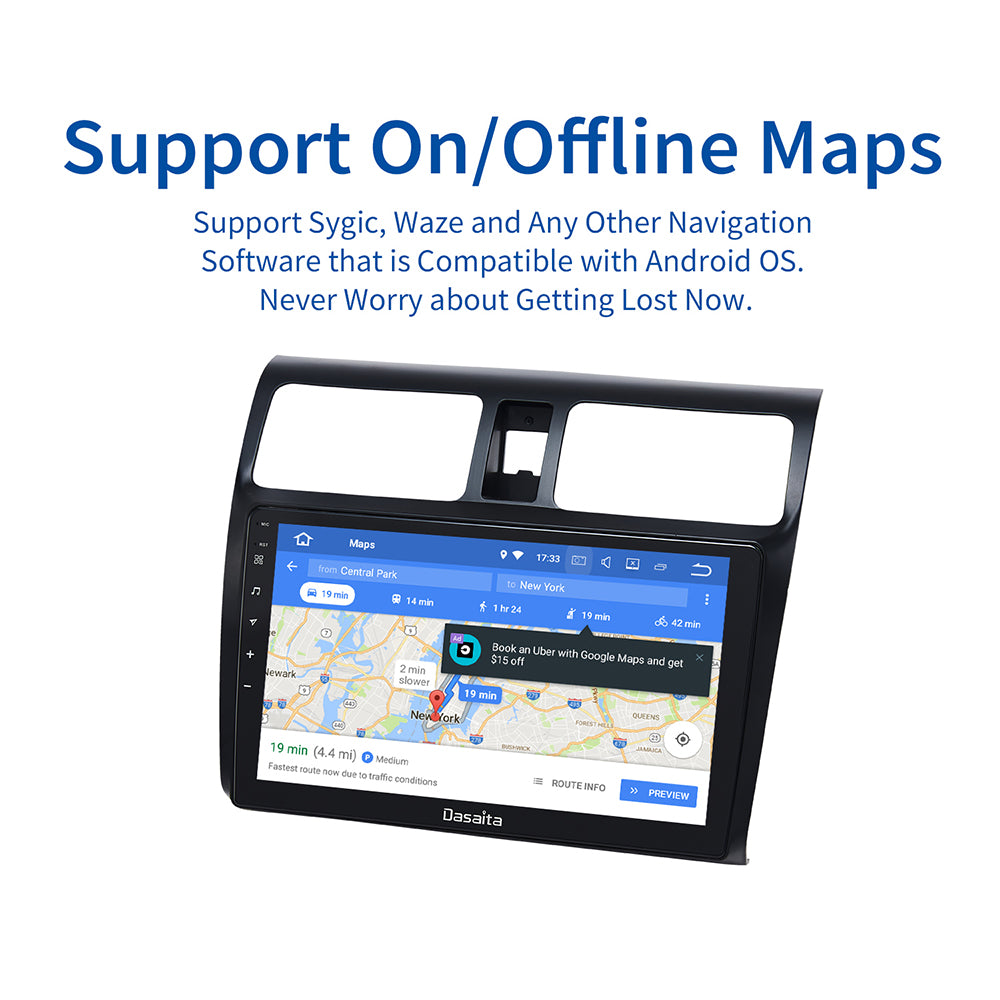

Navigation Function
- Online Navigation Capability with Google maps
- Navigation with Apple CarPlay and Android Auto
- Offline Navigation capabilty with Sygic, Waze, Here, etc.
USB Connection
- 3 USB Connection: Cable Length 1M
General
- Display: Capacitive WVGA High Resolution Display
- 6 PreOuts (2.5V, 2 Front / 2 Rear / 2 Subwoofer)
- AUX-In: 1 A/V AUX Input (RCA)
- Steering Wheel Remote Control Function
- Camera Connection (Fon)
- Brighness/Contrast Adjustment
- Menu Language: More than 75 Languages (for all over the world)
- Firmware Updatable
Installation Harness
- Includes Steering Sheel Remote Wiring Harness
- Includes Canbus, Vehicle Display Interface Ready
- Includes Radio Antenna Adapter
- Includes an Adapter that Connects the Original USB Port In the Dashboard

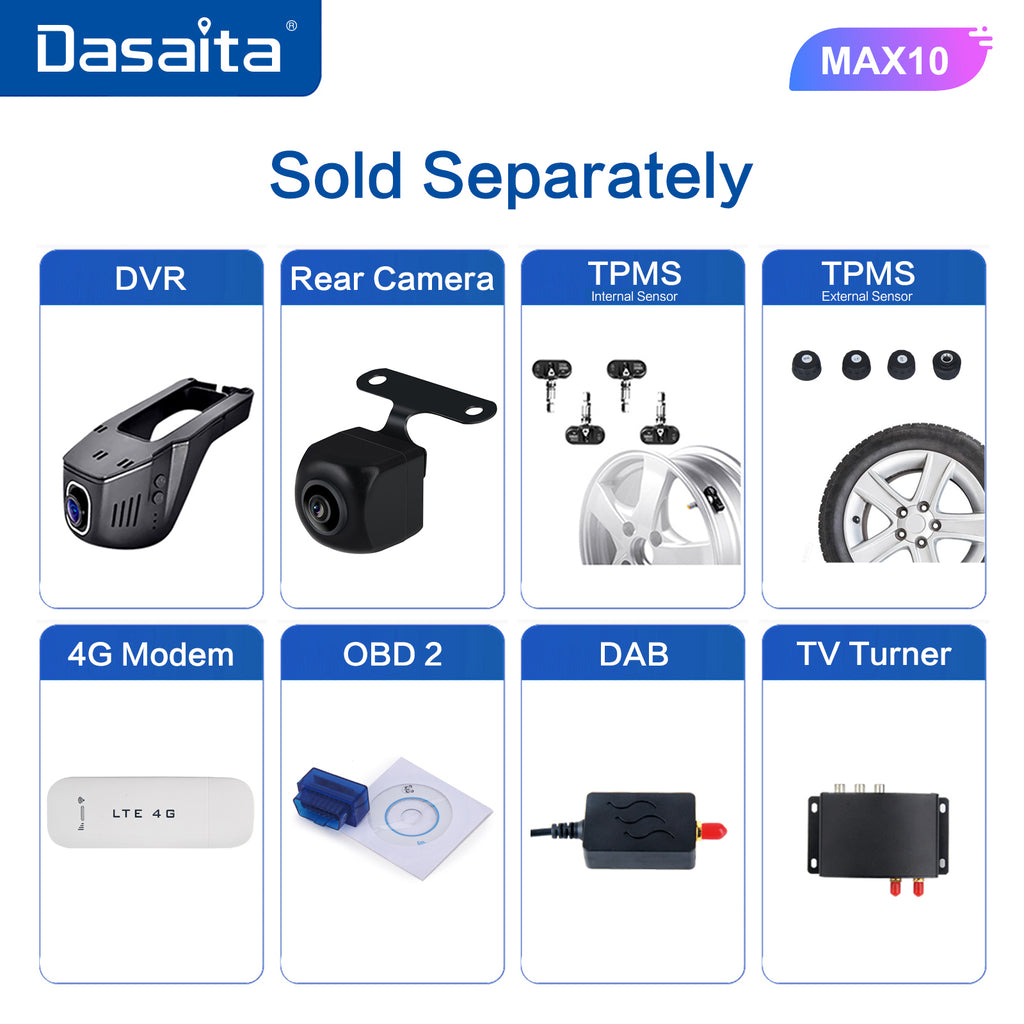

Optional Devices :
DAB,DTV,TPMS,OBD,DVR,CAMERA
SPECIFICATIONS:
CPU: RK3399, Dual Cortex-A72 + Quad Cortex-A53, 64-bit
- OS: Android 10
- RAM: 4GB
- ROM: 64GB
Screen
- Display Size: 10.25 inch
- LCD Type: IPS LCD
- Resoluctions: 1280*480
Radio Chip
- ST7708
- Built-in RDS
Bluetooth Chip
- RTL8761
- Bluetooth 5.0
Wifi Chip
- RTL8822cs
- 2.4Ghz
Amplifier Chip
- TDA 7850
- Max Power Output: 4x50 W
- DSP IC: ADAU1401
USB
- USB Requirements: USB 2.0 3.0
- File System: FAT 16/32
- 3*USB Input
GPS / Glonass
- GPS / Glonass Compatible
- GPS Antenna Included
Button Illumination
- RGB
Input&Output
- Dual Camera Input(Front/Rear)
- 4 Audio Output, 2 Sub output
- 1AUX Input
Genaral
- Operating Voltage: 14.4V (8.5 ~ 16V Allowable)
- Standby Current: 1.5mA-3mA
- Maximum Current Consumption: 15A

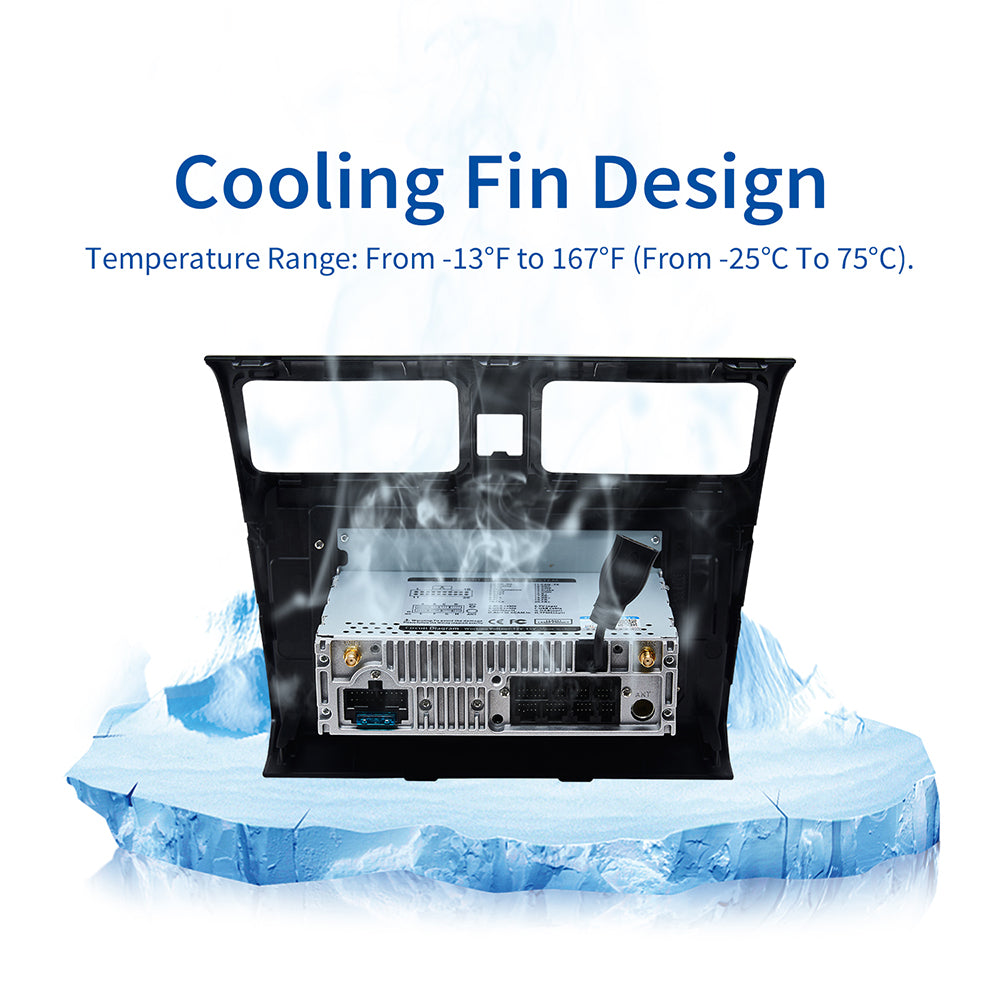

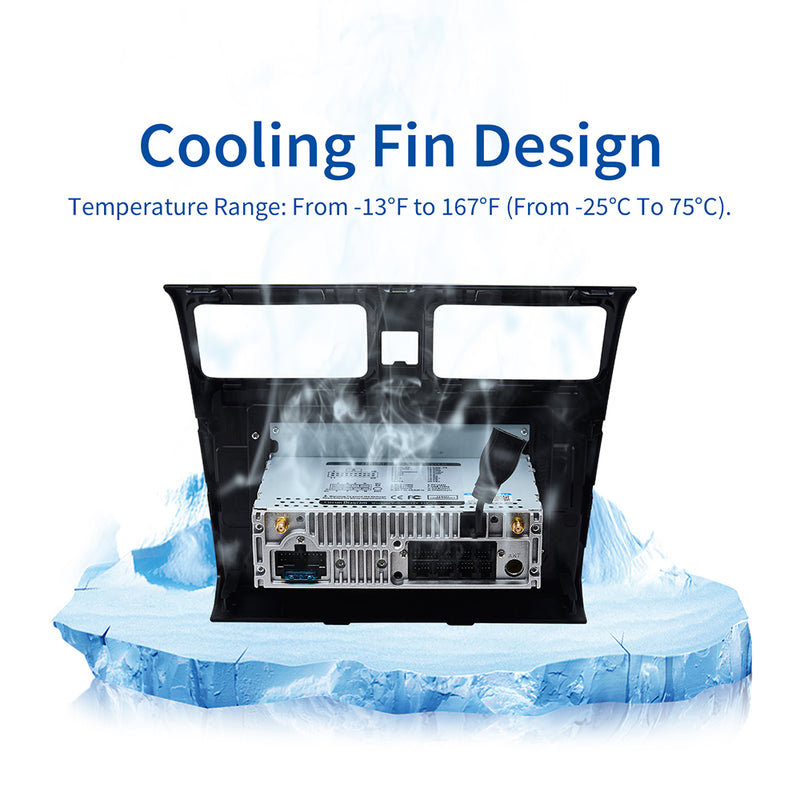

- Operation Temperature Range: -20°C ~ 60°C
- Operating Voltage: 14.4V (8.5 ~ 16V Allowable)
- Standby Current: 1.5mA-3mA
- Maximum Current Consumption: 15A
- Operation Temperature Range: -20°C ~ 60°C
